  Valve Test  Rig

 Model：

  DYFJ-H

 Testing Range：

  DN15-2400

 Testing Medium：

  Water,Gas or Oil


1.Summary

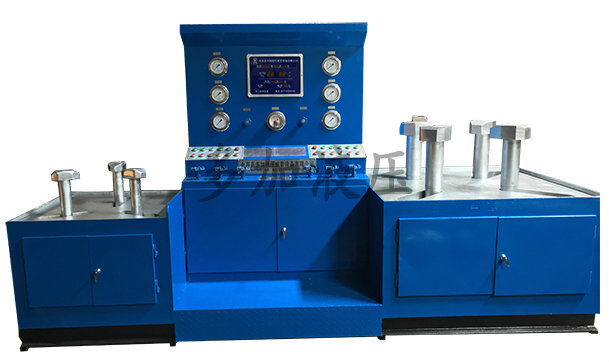

The hydraulic butterfly valve test bench of model DYFJ-H is used to perform shell test and seat test of butterfly valves, Knife Gate Valve  and Check Valve.As for the way of loading and clamping of the valve to be tested, the test bench adopts the way of pulling downwards of the clamping jaw. As for the form of configuration, the test bench can also be designed into two types, unitary type, that is, one hydraulic station controls one workbench, and set type, that is, one hydraulic station controls two workbenches. The appropriate type of test bench will be selected, designed and manufactured according to the customers′ requirements of testing pressure range. “ Touch screen  “ intelligent control system and printer system is optional ; Safety door device is optional.

2. Technical Parameters.

3.Pressure Check List .

Model :DYFJ-H200

Model :DYFJ-H300

Model :DYFJ-H600

Model :DYFJ-H800

Model :DYFJ-H1200

Model :DYFJ-H1600

Model :DYFJ-H2000

Model :DYFJ-H2200

Model :DYFJ-H2400

PN-denote the pressure of the oli cylinder when performing seat test ; PS – denotes the pressure of the oil cylinder when performing shell test .
